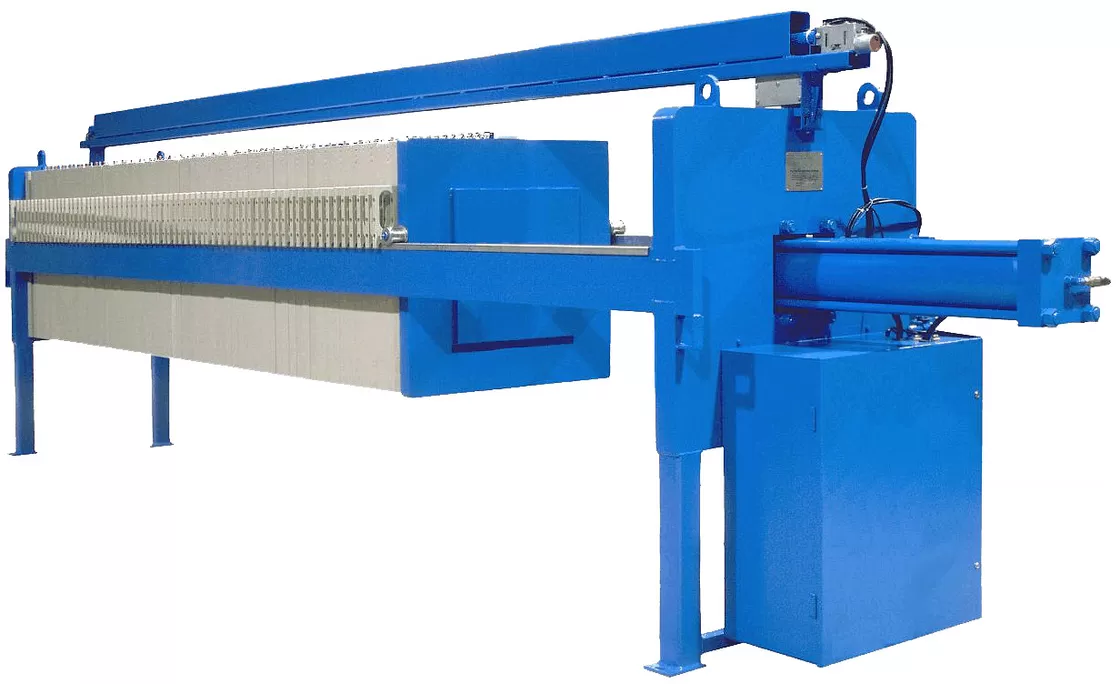

Plate and Frame Filter Press FP630 Chemical Industry Liquid Solid Separation

Plate and Frame Filter Press FP630 Chemical Industry Liquid Solid Separation

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO 9001
Model Number: FP 630

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 4000 -20000 USD
Packaging Details: Pallet in Container
Delivery Time: 4-8 WEEKS
Payment Terms: D/P, Western Union, MoneyGram, T/T, L/C
Supply Ability: 100 SET/ MONTH
Contact Now
Detailed Product Description

Detailed Product Description

Filter Area:32M2No. Of Filter Chamer:58
Total Volume:0.429 M3Thickness Of Filter Plate:53mm
Thickness Of Cake:30mmPressure:1.0 Mpa
Application:Chemical , Pigment , Dye,etc

Mining and Mineral Process Automatic Filter Press FP 1000 Chamber Filter Press

Filter Press Equipment :
1 . Filter Pressure 1.0 to 1.6Mpa
2  .Filter Area 11 to 32sqm
3   Automatic shifting and discharging cake

FP 630Automatic Filter Press  Plate and Frace Filter Press
1. Automatic hydraulic compressing, automatic maintaining pressure
2. Relay control
3. Electric controlling cabinet is combined with hydraulic station
4 Max.Filter temperature 120 centi degree
5. Automatic shifting and discharging
6. SUS slide way
7. Steel structure
8. Raw reinforced polypropylene filter plate
9. The side bar is made from Q235-A solid steel plate

Technical parameter:

Filter Area(m2) 11 16 20 25 32 44 60 72 80 90
Thickness of cake(mm) 30 30 30 30 30 30 30 30 30 30
Number of plates(piece) 10/9 13/12 19/18 22/21 25/24 28/27 31/30 37/36 43/42 49/48

Components

Item No. Description Manufacturer
1 Motor of hydraulic station ABB
2 Major electric components Schneider
3 Hydraulic valve,  Local
4 Filter cloth ECOGRACE





Applicable field

1.) Metallurgy, Mining & Mineral , coal
Gold, silver, copper, zinc ore mineral powder, coal washing , tailing coal
Aggregate , Asphalt , Limestone , Gypsum , etc

2) Chemical
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)


3)Sewage
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment

4 )Foods
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices

5) Pottery clay
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces

6) Petroleum
Diesel oil, sesame oil, shortening dewaxing etc



Plate and Frame Filter Press FP630 Chemical Industry Liquid Solid Separation
