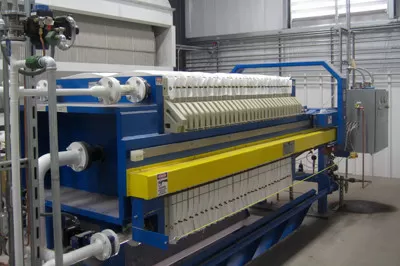

Chamber / Membrane Filter Press FP1250 Waste Water Treatment 200 M2 Filter Press

Chamber / Membrane Filter Press FP1250 Waste Water Treatment 200 M2 Filter Press

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO 9001
Model Number: FP 1250

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 4000 -20000 USD
Packaging Details: Pallet in Container
Delivery Time: 4-8 WEEKS
Payment Terms: D/P, Western Union, MoneyGram, T/T, L/C
Supply Ability: 100 SET/ MONTH
Contact Now
Detailed Product Description

Detailed Product Description

Filter Area:125 M2No. Of Filter Chamer:48
Total Volume:1.935 M3Thickness Of Filter Plate:65mm
Thickness Of Cake:30mmPressure:1.2 Mpa
Application:Waste Water , Sewage , Mining

Chamber / Membrane Filter Press FP1250 Waste Water Treatment 200 M2 Filter Press

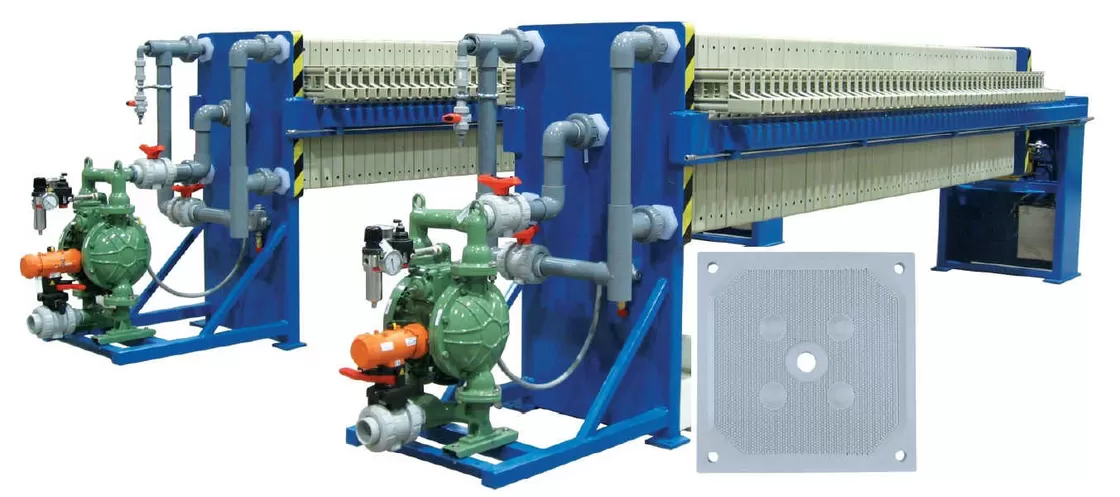

Mining and Mineral Process Automatic Filter Press FP 1000 Chamber Filter Press

Filter Press Equipment :
1 . Filter Pressure 1.0 to 1.6Mpa
2  .Filter Area 11 to 125 sqm
3   Automatic shifting and discharging cake

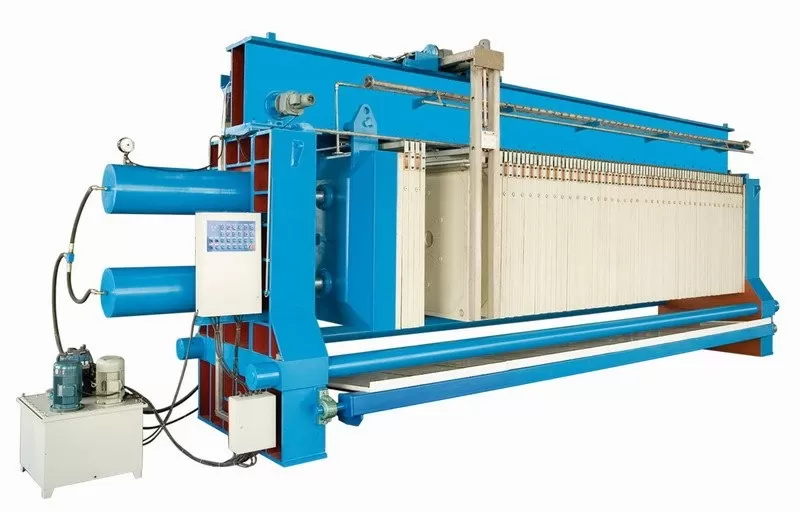

FP 1250 Automatic Filter Press Chamber Filter Press / Membrane Filter Press
1. Automatic hydraulic compressing, automatic maintaining pressure
2. Relay control
3. Electric controlling cabinet is combined with hydraulic station
4 Max.Filter temperature 120 centi degree
5. Automatic shifting and discharging
6. SUS slide way
7. Steel structure
8. Raw reinforced polypropylene filter plate
9. The side bar is made from Q235-A solid steel plate

Technical parameter:

Filter Area(m2) 100 112 125 140 160 180 200 224 250 260
Thickness of cake(mm) 30 30 30 30 30 30 30 30 30 30
Volume ( M3 ) 1.53 1.695 1.935 2.1 2.42 2.745 3.065 3.39 3.795 4.105

Components

Item No. Description Manufacturer
1 Motor of hydraulic station ABB
2 Major electric components Schneider
3 Hydraulic valve,  Local
4 Filter cloth ECOGRACE





Applicable field

1.) Metallurgy, Mining & Mineral , coal
Gold, silver, copper, zinc ore mineral powder, coal washing , tailing coal
Aggregate , Asphalt , Limestone , Gypsum , etc

2) Chemical
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)


3)Sewage
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment

4 )Foods
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices

5) Pottery clay
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces

6) Petroleum
Diesel oil, sesame oil, shortening dewaxing etc

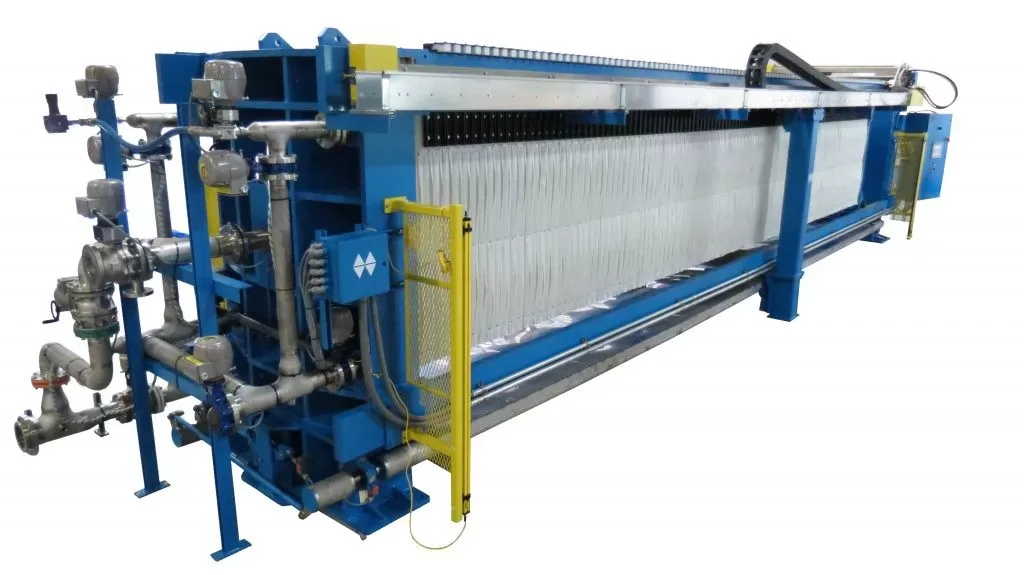

 Chamber / Membrane Filter Press FP1250  Waste Water Treatment 200 M2 Filter Press
