Vertical Leaf Press Filter Monofilament Filter Cloth For Alumina Plant Filtration

Vertical Leaf Press Filter Monofilament Filter Cloth For Alumina Plant Filtration

Product Details:

Place of Origin: CHINA
Brand Name: ECOGRACE
Certification: ISO / 9001 , SGS
Model Number: 1500 mmX 1500 mm

Payment & Shipping Terms:

Minimum Order Quantity: 50 sets
Price: 10 -50 USD / PCS
Packaging Details: Polybags with pallets
Delivery Time: 2-6 WEEKS
Payment Terms: Western Union, MoneyGram, L/C, T/T, D/A, D/P
Supply Ability: 2000 sets / day
Contact Now
Detailed Product Description

Detailed Product Description

Filter Cloth:PA / NYLON Filter ClothWeaving:Plain
Yarn/ Filament:MonofilamentApplication:Mining , Slurry Dewatering ,Coal Washing , Alumina ,

Alumina Plant Filter Cloth Type and Application :

Plate / Chamber Press Filter

Amongst various types of Press filter for Liquid / Solid separation, Monofilament and Multi filament  Filter Clothes are available in different sizes  to cater the needs of the customer.

Horizontal Belt Filter

Amongst various types of vacuum filter for Liquid / Solid separation, there is great demand for the Horizontal Belt Filter.

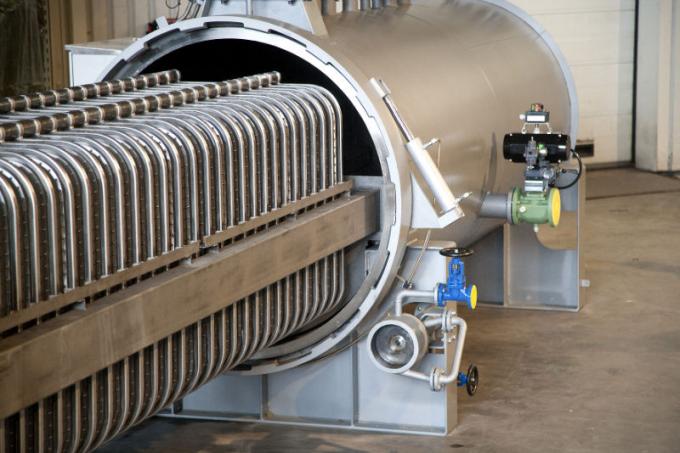

Centrifuge, Leaf Filter Machine

We provide strong and thick filtration cloth for use in centrifuge applications.
Our “F-series” is most suitable for fine particles filtration.

PAN / DISC  Filter Equipment Filter Cloth

we can draw on a database containing alithe technical properties: drawings, merchandise data and basic specifications handled by CAD systems in the Projects Department.

Features:

1. Heat-resistant, high pressure
2. High efficiency
3. Competitive price

Detailed information:

1.Various of filter press cloth,

2.Material: PP, PET, PA, PVA etc,

multifilament and monofilament,

3.Be used for chemical, mine/metallurgy, food, biological, waste water indutries.

4. Make filter cloth according to size of your filter plates.

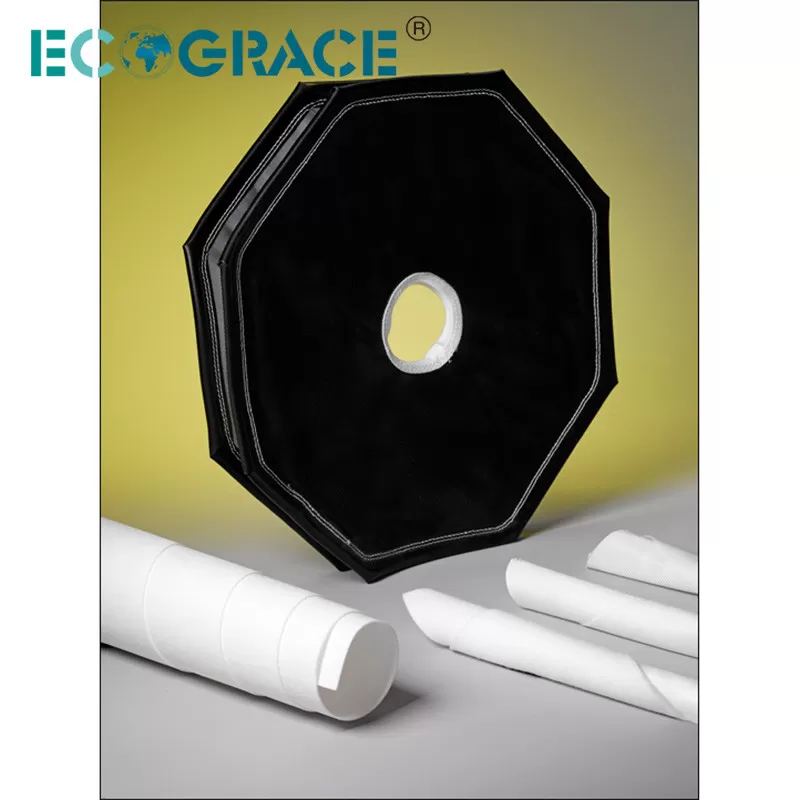

Vertical Leaf Press Filter Monofilament Filter Cloth For Alumina Plant Filtration
PP/ Monofilament  filter cloth
Code Material Weave Weight Density root/10cm Thickness Breaking strengthtn/20cm Elongation Air permeability
      g/m2 Warp Weft mm Warp Weft Warp Weft
860-1 Polypropyelene Cloth  Twill 465 251 149 0.95 4491.4 3933.4 50.63 34.07 49.94
860-2 Polypropyelene Cloth Twill 575 283 141 1.05 5258.25 4221.25 46.87 35.53 37.35
860-3 Polypropyelene Cloth Twill 550 314 133 1.1 5625 4870 54.67 34.8 27.75
880-A Polypropyelene Cloth Twill  570 330 220 1.2 5500 5200 52.3 35 26
880- B Polypropyelene Cloth Twill 340 181 141 0.63 5234 3489.40 25.53 33.07 81.38
890-AB Polypropyelene Cloth Twill 720 377 220 1.4 6718.25 5421.75 47.5 28.3 24.41
