Automatic PF800 Membrane Filter Press Slurry Filter Press Sludge Drying Machine

Automatic PF800 Membrane Filter Press Slurry Filter Press Sludge Drying Machine

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO 9001
Model Number: FP 800

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: 4000 -20000 USD
Packaging Details: Pallet in Container
Delivery Time: 4-8 WEEKS
Payment Terms: D/P, Western Union, MoneyGram, T/T, L/C
Supply Ability: 100 SET/ MONTH
Contact Now
Detailed Product Description

Detailed Product Description

Filter Area:30 M2No. Of Filter Chamer:32
Total Volume:0.483 M3Thickness Of Filter Plate:65mm
Thickness Of Cake:30mmPressure:1.0-1.5 Mpa
Application:Slurry , Sewage Dewatering Filter Press

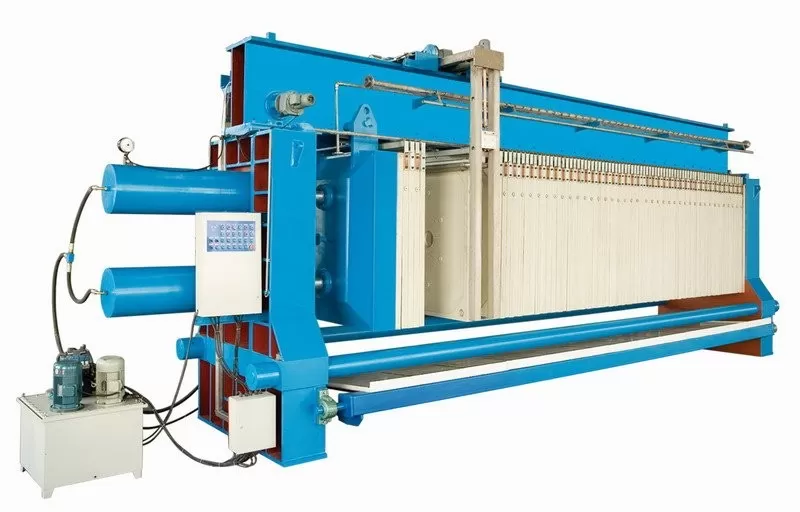

Automatic PF800 Membrane Filter Press Slurry Filter Press Sludge Drying Machine

Filter Press Equipment :
1 . Filter Pressure 1.0 to 1.6Mpa
2  .Filter Area 10 to 60 sqm
3   Automatic shifting and discharging cake

FP 800 Automatic Filter Press
1. Automatic hydraulic compressing, automatic maintaining pressure
2. Relay control
3. Electric controlling cabinet is combined with hydraulic station
4 Max.Filter temperature 120 centi degree
5. Automatic shifting and discharging
6. SUS slide way
7. Steel structure
8. Raw reinforced polypropylene filter plate
9. The side bar is made from Q235-A solid steel plate
10. ISO9001:2008 quality management system, ISO14001:2004 environmental management system and CE certified
11. Warranty period 1 year

Technical parameter:

Filter Area(m2)304060708090100120*140*160*
Thickness of cake(mm)30303030303030303030
Number of plates(piece)10/913/1219/1822/2125/2428/2731/3037/3643/4249/48

Components

Item No.DescriptionManufacturer
1Motor of hydraulic stationABB
2Major electric componentsSchneider
3Hydraulic valve, Local
4Filter clothECOGRACE





Applicable field

1.) Metallurgy, Mining & Mineral , coal
Gold, silver, copper, zinc ore mineral powder, coal washing , tailing coal
Aggregate , Asphalt , Limestone , Gypsum , etc

2) Chemical
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)


3)Sewage
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment

4 )Foods
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices

5) Pottery clay
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces

6) Petroleum
Diesel oil, sesame oil, shortening dewaxing etc



Automatic PF800 Membrane Filter Press Slurry Filter Press Sludge Drying Machine
