1500x 1500mm High Pressure Filter Press Plate PP Membrane Filter Plate

1500x 1500mm High Pressure Filter Press Plate PP Membrane Filter Plate

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: ISO 9001 / SGS
Model Number: 1500 x 1500

Payment & Shipping Terms:

Minimum Order Quantity: 5
Price: 280 USD / pcs
Packaging Details: Pallet
Delivery Time: 5-8 working days
Payment Terms: D/P, D/A, D/, T/T, L/C, Western Union, MoneyGram
Supply Ability: 500 PCS per day
Contact Now
Detailed Product Description

Detailed Product Description

Filter Plate Material:PolypropyleneSize:1500 Mmx1500 Mm
Color:GreyApplication:Fit In Filter Press Machine
Thickness:By Order

1500x 1500mm High Pressure Filter Press Plate PP Membrane Filter Plate


ECOGRACE Supply the Filter Plate and Filter Press Cloth for waste water treatment plant , caol washing plant , etc .

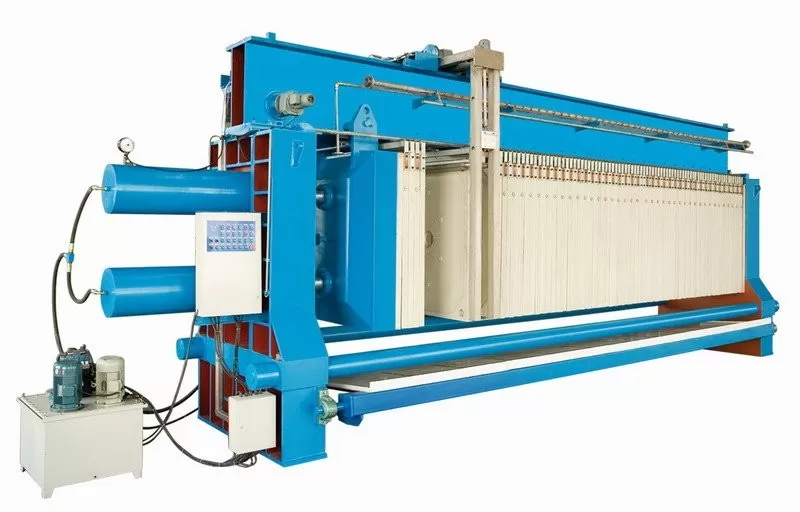

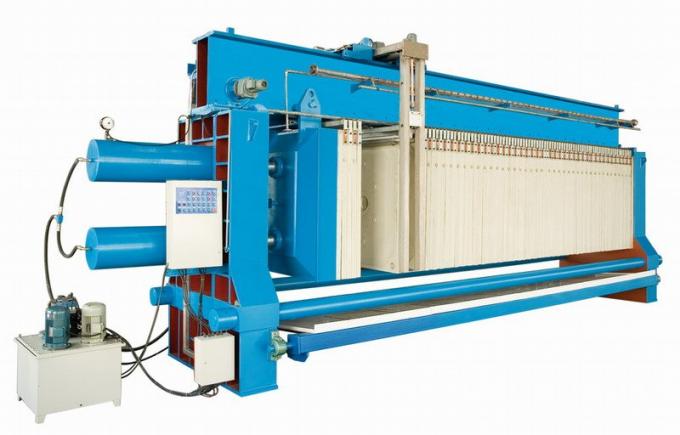

Filter plate is fitted on the filter press bar ,it is working with filter cloth to increasing the filter press filter area , holding the solid and form the filter cake during the process of filtration .

Material of Filter Plate:
It including Cast iron and Polypropylene, we mainly use the Polypropylene material, it is better for oxidize and high temperature resistance).

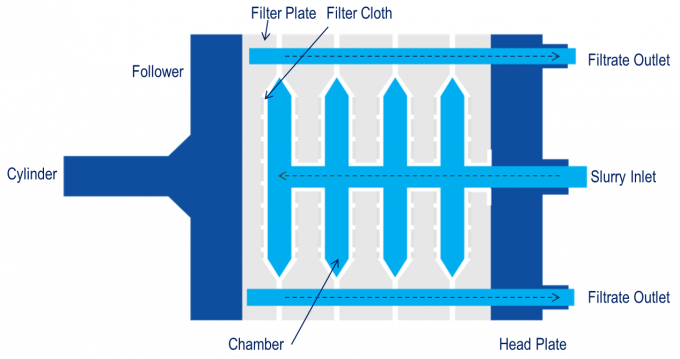

How the filter plate works ?
The filter plate is working for the solid and liquid seperation for the press filter .
The material feeded by the pump to the filter chamber ,than to the filter space pressed by two filter plates, the liquid filterd by the filter cloth , the solid released from the filter plate . This is the process of solid and liquid seperation .

Filter Plate application :

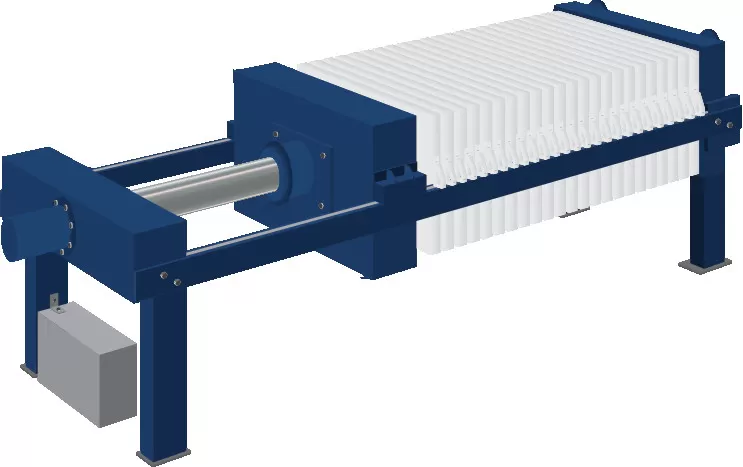

Recessed Press Filter ( Plate and Frame Press Filter ). Chamber Press Filter , Membrane Press Filter , Plate and Frame Filter Press Machine .

Advantage of ECOGRACE Filter Plate :

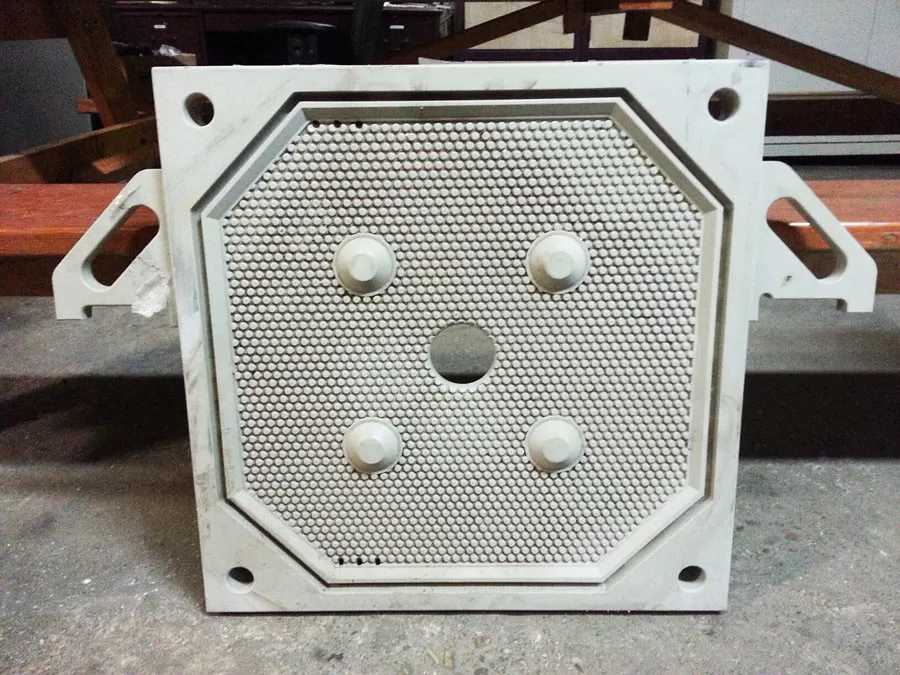

Filter plates adopt PP ( Polypropylene ) material to press mould, and the design of filtration surface adopts special channel, smooth and without any blockage.

Material of our filter plate consists of Polypropylene , TPE elastomer and fiber glass. Our filter plate with advantage of flexibility, toughness, rigidity. After the process of the CNC machining center, the flatness of the filter plate is lower than 25um which make sure excellent sealing when pressing, and without any leakage when feeding.

All specifications of our filter plates not only comply with China JB/T4333.3-2005 standard, but also comply with Germany DIN7129 standard , completely in common with the European & Amerian products.


The maximum feeding pressure of the filter plate is 3 Mpa. With the properties of high temperature and high pressure resistance, antisepsis and airtight, short filtering cycle, good processing effect and low humidity of the cake.

Standard Size of ECOGRACE Filter Plate:


Chamer Filter Press Plate Reguar Size ( mm ):
Model : 2000 x 2000
Model :1600 x 2000
Model :1500 x 2000
Model : 1250 x 1250
Model :1000 x 1000
Model :870 x 870
Model : 800 x800
Model :630 x 630
Applications of Filter Plate:

Chemicals Waste Water Treatment Mining & Mineral  Foods and Berverage
Metallurgy Pharmacy Non-metallic Mines Alunina , Aluminium



Recessed Filter Press Plate Regular Size :
Model :1000
Model :890
Model : 800
Model :630
Model :450
Model :320
Model : 200

Membrane Press Filter Plate Regular Size :
Model :1500 x 1550
Model :1250 x 1250
Model : 1000 x 1000
Model :870 x 870
