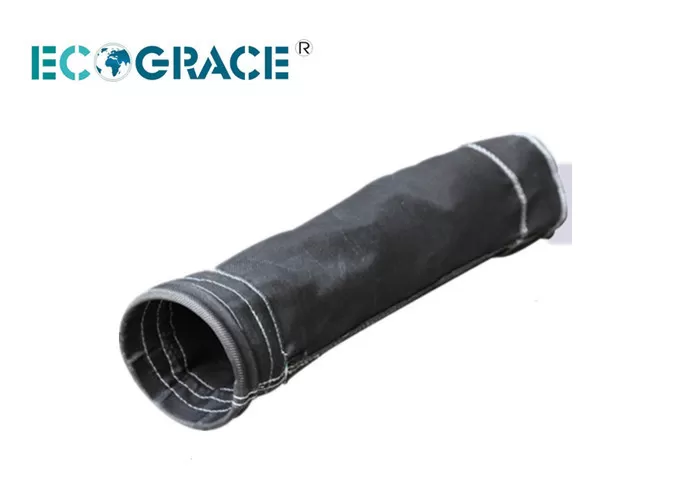

Metallurgy Plant Fiberglass Filter Bag ( 160 x 6000) for Smoke Filtration

Metallurgy Plant Fiberglass Filter Bag ( 160 x 6000) for Smoke Filtration

Product Details:

Place of Origin: Zhejiang, China
Brand Name: ECOGRACE
Certification: SGS,ISO
Model Number: FG-160x6000

Payment & Shipping Terms:

Minimum Order Quantity: 100 pcs
Price: USD$18-35/pcs
Packaging Details: In cartons
Delivery Time:
Payment Terms: L/C, D/A, T/T, Western Union, MoneyGram, D/P
Supply Ability: 5000 pcs per week
Contact Now
Detailed Product Description

Detailed Product Description

Fiber:Fiberglass Filter BagWeight:775 Gsm
Thickness:0.8mmDiameter:120-180mm
Length:2000-8000mmApplication:Cement Plant
Working Temperature:260degreeWarranty:12month

Metallurgy Plant Fiberglass Filter Bag ( 160 x 6000) for Smoke Filtration

Fiberglass Filter Bags Specification:
1. Material : Fiberglass staple fiber
2. Scrim: with fiberglass staple yarn
3. Width:≤2.2m
4. Thickness:2.3-2.7mm
5. Weight:800-900g/m2 ±10%
6. Temperature (ºC): Continue: 240, Instant: 280

Fiberglass Filter Bags Applications :

Fiberglass non woven filter media bags applications ranges in asphalt plant, incinerator, metallurgy, cement carbon black, liquid boiler, coal fire boiler dust filtration.

Fiberglass Filter Bags Advantages :

1. Good Temperature-Resistance. Max. Temp. 280 degree C.
2. High Filtration Efficiency: up to 99.9%
3. Excellent performance in Anti corrosion.
4.Fiberglass filters is the first choice for incinerator smoke , smoke in industries like metallurgy, cement , carbon black, liquid boiler, coal fire boiler.
5. Longer working time: more than 36 months.
6. Variety of finish treatments : Coating PTFE Membrane ,PTFE Impregnation
7. Good heat resistance, flame retardant, anti-corrosion effect.
8 . Used in dust filtration of high temperature, high acidity, high alkalinity, fine high
temperature, collection of valuable metal powder , high adhesive property etc.
9. . Customized by order.
With rich practical experience and working R&D team, we can design and develop kinds of filter media to satisfy the complex and diverse working conditions.
10. Advanced production lines: Complete testing and testing methods are the assurance to the products’ quality.

Metallurgy Plant  Fiberglass Filter Bag ( 160 x 6000)  for Smoke Filtration

Fiberglass Filter Bags Physical Properties :

Weight(gsm) 850
Thickness(mm) 2.5
Width(mm) ≤2.2m
Finish treatment Singeing, Calendering, Heat setting
Air permeability(L/m2.s) 200-350
Tensile strength(N/5cm) warp ≥900
weft ≥1050
Tensile elongation(%) warp ≤35
weft ≤60
Heat shrinkage(%) warp ≤1.5
weft ≤1.0
Temperature(ºC) Continue 240
Instant 280


Fiberglass Filter Bags Chemical Properties:

Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent
hydrolysis stability Good
Metallurgy Plant  Fiberglass Filter Bag ( 160 x 6000)  for Smoke Filtration
Metallurgy Plant  Fiberglass Filter Bag ( 160 x 6000)  for Smoke Filtration
