Power Plant PPS Filter Bag for High Temperature Fume Filtration,Ryton Bag Filter

Power Plant PPS Filter Bag for High Temperature Fume Filtration,Ryton Bag Filter

Product Details:

Place of Origin: China
Brand Name: ECOGRACE
Certification: SGS
Model Number: D160X6000

Payment & Shipping Terms:

Minimum Order Quantity:
Price:
Packaging Details:
Delivery Time:
Payment Terms:
Supply Ability:
Contact Now
Detailed Product Description

Detailed Product Description

Minimum Order Quantity:300PCSPrice:15~50USD/PCS
Packaging Details:Poly Bag Or Paper CartonsDelivery Time:25 Days
Payment Terms:T/T ,L/CSupply Ability:20000pcs/month
High Light:PPS needle felt, Bag filter for cement plant, Ryton needle felt

Power Plant special applied  PPS Filter Bag for High Temperature Resistant Fume Filtration

PPS filter bag Ryton filter bag for Thermal power plant dust filtration

PPS material filter bags
PPS bag filter
PPS sewing filter bags
PPS dust filter
PPS dust collecter

High Efficiency Dust Collector Filter Bags PPS Filter Bag for High Temperature Resistant Fume

PPS filter bag Ryton filter bag for Thermal power plant dust filtration

Dust filter bags PPS ,Ryton filter bag Detail discription .

Introduction :
PPS filter bags are made of 100% PPS fiber ,it is the best choice for thermal power dust collector , which are of  ryton filter bags, dust collector filter bags or dust collection filter bags.

Applications :

Being ryton filter bags, PPS filter bags  are widely used in themal power industry, cement industry, chemical industry,Iron and steel industry,  Aluminum industry , etc.

Features  :
PPS filter bags features anti-high temperature ,excellent  anti-anrasion, good anti-acid and good  anti-alkali .

Advantages :
1.With high tensile strength and low tensile elongation
2.Applied in continuous temperature 190℃ , works well .
3.As dust collector filter bags, it is largely used in thermal power industry.
4.With good air permeability and also can be adjusted by customers’ specific request
5.Being dust collection filter bags, they are installed in baghouse and with high-efficiency filtration .

Specifications
1.Material :with100% pps fiber
2.Scrim:  with pps staple yarn
3. Finish treatment with singeing, calendering and heat setting.
4.Air permeability (l/m2/s):   150~300
5.Temperature (℃): Continue: 190, Instant: 220

Function of several dust filter bags

 Dust collector filter bag

Continuous temperature

Peak Temperature

Description

Resistance to Acids

Resistance to Alkalis

Resistance to Oxidation

PH Value

PP filter bag

90℃

95℃

PP

Excellent

excellent

restricted

1~14

Acrylic filter bag

125℃

140℃

DT

good

good

good

3~11

Polyester dust filter bag

150℃

150℃

PE

restricted

moderate

good

4~12

PPS filter bag

190℃

200℃

PPS

Excellent

excellent

moderate

1~14

Polyimide filter bag

240℃

260℃

P84

good

moderate

good

3~13

PTFE 100% filterbag

250℃

280℃

PTFE

Excellent

excellent

excellent

1~14

Fiberglass Filter bag

260℃

300℃

BQ

good

good

good

3~11

Filter bags, dust collector bags, dust bags, filter socks, bags, tubes, socks – they all mean the same thing: An industrial grade fabric filter made from heavy duty material, all textile based, used in dust collecting systems, in either process filtration or pollution control.

The main type of dust filter bags including Nomex filter bag ,PPS filter bags ,P84 filter bag ,PTFE filter bags ,Acrylic filter bags ,Polyester filter bags,dust filter bag ,bag filters,dust collector bags.

Dust bags come in 5 basic designs:

Pulse jet bags (bottom loader or bottom removal)
Pulse jet bags(top loader or top removal)
Shaker design
Reverse air design
Envelope bags

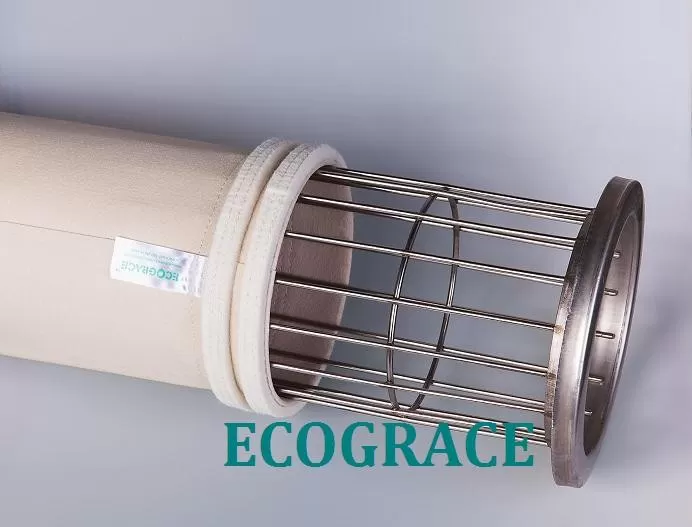

Pulse jet bags PPS filter bag  Ryton filter bag are cleaned using compressed air to mechanically “pulse” or snap the bag periodically so that the built up filter cake is discharged and the flow through the media is returned to its higher air permeability.Ryton filter bag ,PPS filter bag are all belong to Pulse jet bags.They are  are installed on wire cage supports and filter from the outside/ in. In the bottom load design, bags are pre-installed on their cages and then attached to a mounting thimble or cup which hangs down from the underside of the tube sheet. The tube sheet is a metal plate with regularly spaced holes which serves as the top of the gas tight metal box known as a dust collector. The top edge of the bottom loading bag is normally tucked into the cage and the entire assembly is attached to the thimble or cup with a hose clamp.

Installation of bottom loading bags Coal fired boiler filter bag PPS  is more difficult because of being on the dirty side of the collector and having no catwalks or surfaces on which to stand. Some bottom loaders are on the top of large storage bins on tall silos which make installation potentially dangerous. Bottom loader collectors are frequently used when headroom above the collector is not adequate for top removal design bags.

Bottom loading bags are less expensive than comparable size top loaders because the top is plain with no special attachment features.

We are PPS filter bag ,Ryton filter bag manufacturer .

Nomex filter bag for Asphalt mixing plant smoke filtration

P84 dust filtr bag for Cement kiln smoke and gas filtration

PTFE 100% dust filter bags for waste incinerator gas filtration.
