FILTRATION SOLUTION EXPERT!
|
| Place of Origin: | China |
| Brand Name: | ECOGRACE |
| Certification: | SGS |
| Model Number: | Nomex160*4500 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | 15~50USD/PCS |
| Packaging Details: | Polybag or cartons |
| Delivery Time: | 2 weeks |
| Payment Terms: | L/C, , T/T, Western Union, MoneyGram, D/P, D/A |
| Supply Ability: | 5000pcs/week |
Detailed Product Description
| Filter Material: | Nomex Filter Bag | Weight: | 500gsm |
|---|---|---|---|
| Thickness: | 1.9mm | Diameter: | 120-180mm |
| Length: | 2000-9000mm | Application: | Power Plant/ |
| Warranty: | 12month | Certificate: | SGS, ISO |
| High Light: | Nomex needle felt, Aramid filter bag, Nomex filter cloth |

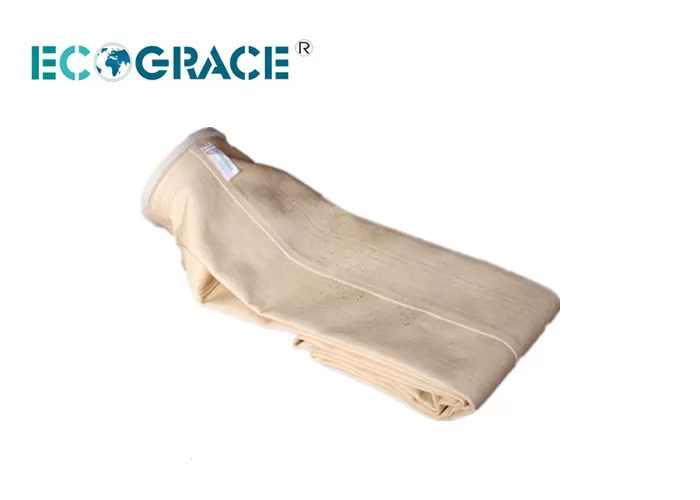

Custom Cement Plant Nomex Filter Bag D160 * 4500 For Higher Temperature Dust Filtration

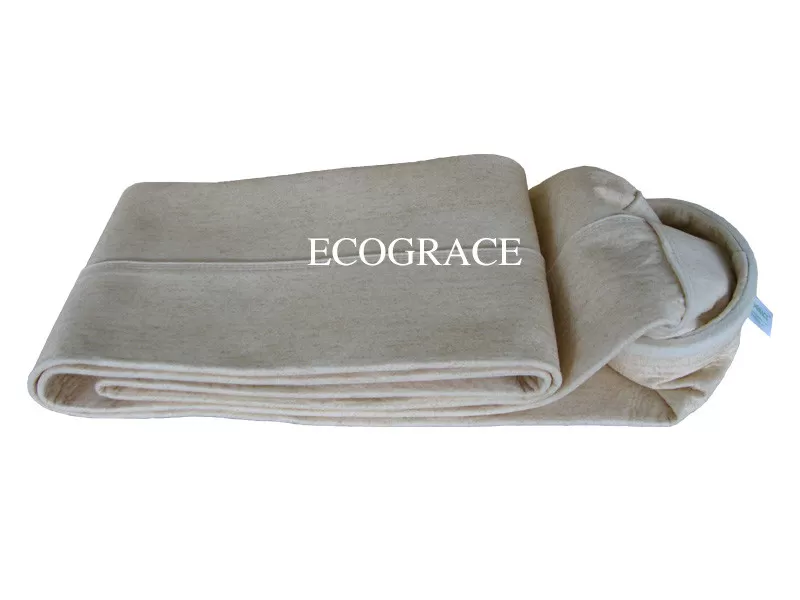

Cement plant Nomex filter bag D160X4500

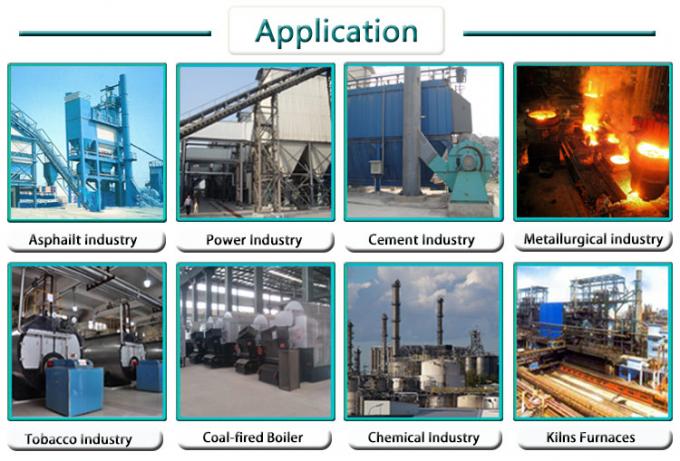

Nomex filter bag for higher temperature dust filtration ,widelyapplied in Asphalt mixing plant ,Kiln smoke in cement plant ,steelmelting furnace smoke and so on .
NOMEX filters offer one of the best total economies in a filtrationsystem because of higher air to cloth ratios, higher temperaturecapability, and a long wear life.
Speciality
1. High Temperature resistant
2. Resists flexing and abrasion

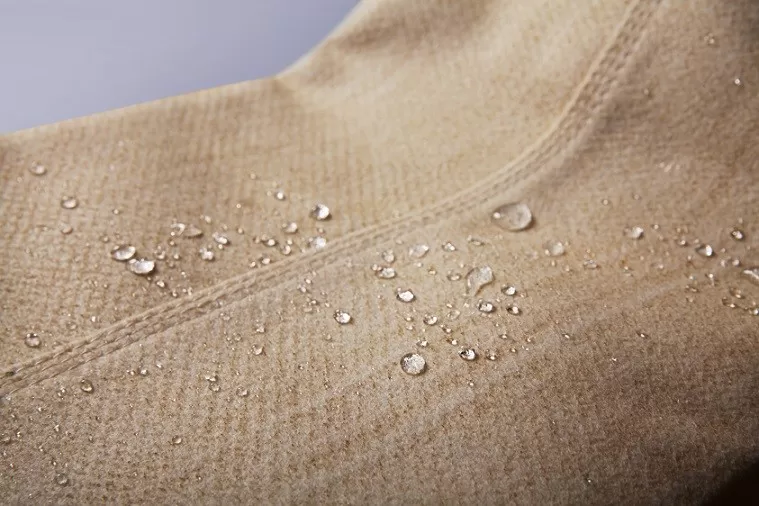

3. Effect of moisture
4. Good chemical resistance
5. Dimensional Stability
6. Flame resistance
The technical data of Nomex needled felt
Nomex filter bag ,Nomex filter ,Aramid filter ,Aramid bag filter,Nomex bag filter ,
|
Article Name |
Nomex needled felt |
|
|
Ingredients |
Fiber |
100% Nomex |
|
Scrim |
100% Nomex |
|
|
Weight |
g/m2 |
500 |
|
Thickness |
mm |
2.1 |
|
Density |
g/m³ |
0.24 |
|
Permeability |
L/dm2.min |
150 |
|
Tensile breaking strength(N/5cm) |
Warp |
≥800 |
|
Weft |
≥1000 |
|
|
Elongation @200N/5cm |
Warp |
<5 |
|
Weft |
<5 |
|
|
Maximum shrink of 90 mins |
Temperature(°C) |
250 |
|
% |
≤1 |
|
|
Service Temperature(°C) |
Continuous |
200 |
|
Instant |
240 |
|
|
Finishing |
Singeing, calendaring |
|
We are manufacuturer of dust filter bags ,Polyester filter bags, Nomex filter bags ,PPS filter bags ,P84filter bag,PTFE teflon 100% filter bags ,etc.for different industry dust filtration applications ,
Meanwhile we are design and manufacturing Baghouse dust collectors ,dust collecting system ,
It widely applied in steel plant ,power plant ,stone crushingarea ,asphalt mixing system,
