| Place of Origin: | China |
| Brand Name: | ECOGRACE |
| Certification: | SGS |
| Model Number: |
| Minimum Order Quantity: | 300PCS |
|---|---|
| Price: | 4-15USD/PCS |
| Packaging Details: | Polybag or cartons |
| Delivery Time: | 2 weeks |
| Payment Terms: | |
| Supply Ability: |
Detailed Product Description
| Payment Terms: | T/T ,L/C |
|---|---|
| High Light: | Nomex filter cloth, filter bag manufacturer, filter element |

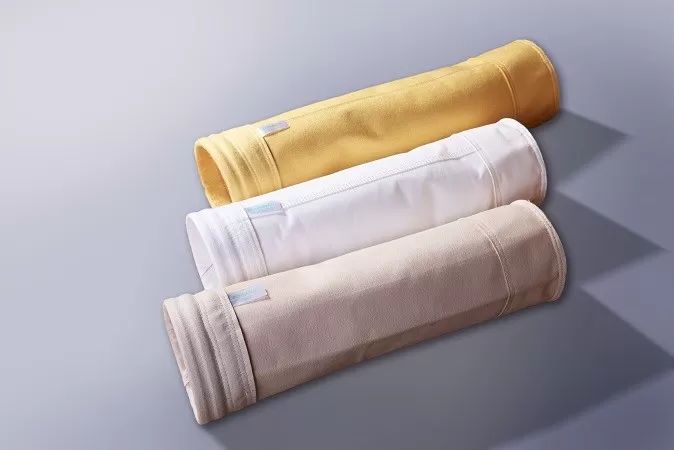

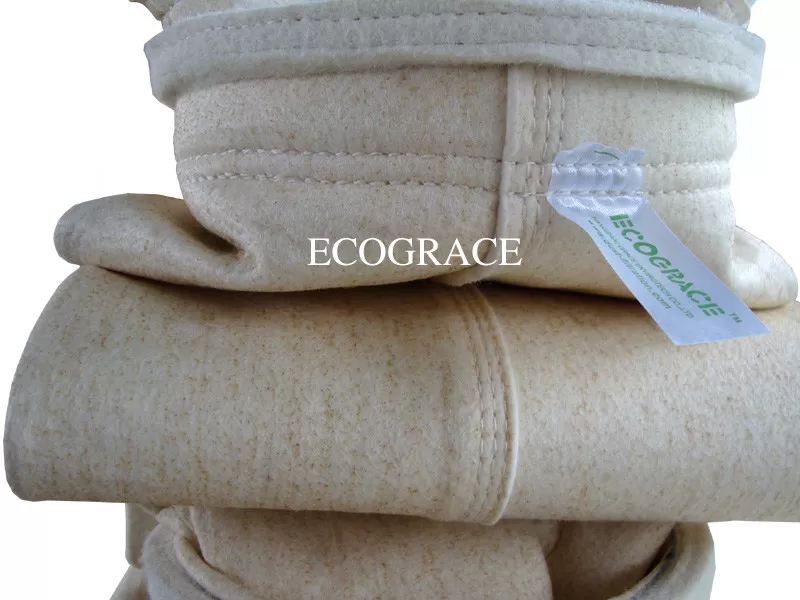

Asphalt Mixing Smoke Filter, Nomex Filter Bag D160 *L3050mm With Dimensional Stability
Asphalt mixing smoke filter Nomex filter bag D160XL 3050
Nomex filter bag for higher temperature dust filtration ,widelyapplied in Asphalt mixing plant ,Kiln smoke in cement plant ,steel melting furnace smoke and so on .
NOMEX filters offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long wear life.
Speciality
1. High Temperature resistant
2. Resists flexing and abrasion
3. Effect of moisture
4. Good chemical resistance
5. Dimensional Stability
6. Flame resistance
The technical data of Nomex needled felt
Nomex filter bag ,Nomex filter ,Aramid filter ,Aramid bag filter,Nomex bag filter ,
Article Name | Nomex needled felt | |
Ingredients | Fiber | 100% Nomex |
Scrim | 100% Nomex | |
Weight | g/m2 | 500 |
Thickness | mm | 2.1 |
Density | g/m³ | 0.24 |
Permeability | L/dm2.min | 150 |
Tensile breaking strength(N/5cm) | Warp | ≥800 |
Weft | ≥1000 | |
Elongation @200N/5cm | Warp | <5 |
Weft | <5 | |
Maximum shrink of 90 mins | Temperature(°C) | 250 |
% | ≤1 | |
Service Temperature(°C) | Continuous | 200 |
Instant | 240 | |
Finishing | Singeing, calendaring | |
We are manufacuturer of dust filter bags ,Polyester filter bags Nomex filter bags ,PPS filter bags ,P84filter bag,PTFE teflon 100% filter bags ,etc.for different industry dust filtration applications ,
Meanwhile we are design and manufacturing Baghouse dust collectors ,dust collecting system ,
It widely applied in steel plant ,power plant ,stone crushingarea ,asphalt mixing system.
