Mining and Mineral Process Automatic Filter Press FP 1000 Chamber Filter Press

Product Details:

Place of Origin:	China
Brand Name:	ECOGRACE
Certification:	ISO 9001
Model Number:	FP 1000

Payment & Shipping Terms:

Minimum Order Quantity:	1SET
Price:	4000 -20000 USD
Packaging Details:	Pallet in Container
Delivery Time:	4-8 WEEKS
Payment Terms:	D/P, Western Union, MoneyGram, T/T, L/C
Supply Ability:	100 SET/ MONTH

Contact Now

Detailed Product Description

Filter Area:	80 M2	No. Of Filter Chamer:	50
Total Volume:	1.2 M3	Thickness Of Filter Plate:	65mm
Thickness Of Cake:	30mm	Pressure:	1.0-1.5 Mpa
Application:	Mining / Mineral , Sewage Dewatering ,etc

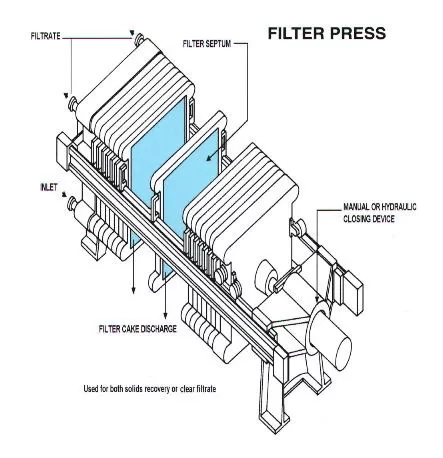

Mining and Mineral Process Automatic Filter Press FP 1000 Chamber Filter Press

Filter Press Equipment :
1 . Filter Pressure 1.0 to 1.6Mpa
2 .Filter Area 50 to 140 sqm
3 Automatic shifting and discharging cake

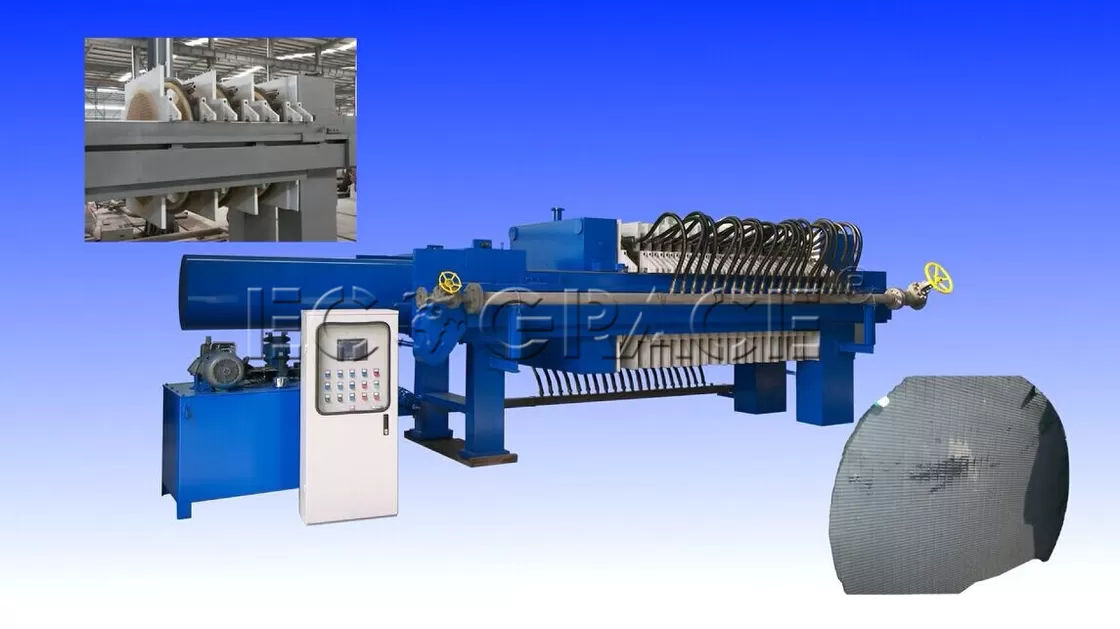

FP 1000 Automatic Filter Press
1. Automatic hydraulic compressing, automatic maintaining pressure
2. Relay control
3. Electric controlling cabinet is combined with hydraulic station
4 Max.Filter temperature 120 centi degree
5. Automatic shifting and discharging
6. SUS slide way
7. Steel structure
8. Raw reinforced polypropylene filter plate
9. The side bar is made from Q235-A solid steel plate

Technical parameter:

Filter Area(m2)	50	60	70	80	90	100	110	120	140	160*
Thickness of cake(mm)	30	30	30	30	30	30	30	30	30	30
Number of plates(piece)	10/9	13/12	19/18	22/21	25/24	28/27	31/30	37/36	43/42	49/48

Components

Item No.	Description	Manufacturer
1	Motor of hydraulic station	ABB
2	Major electric components	Schneider
3	Hydraulic valve,	Local
4	Filter cloth	ECOGRACE

Applicable field of Filter Press :

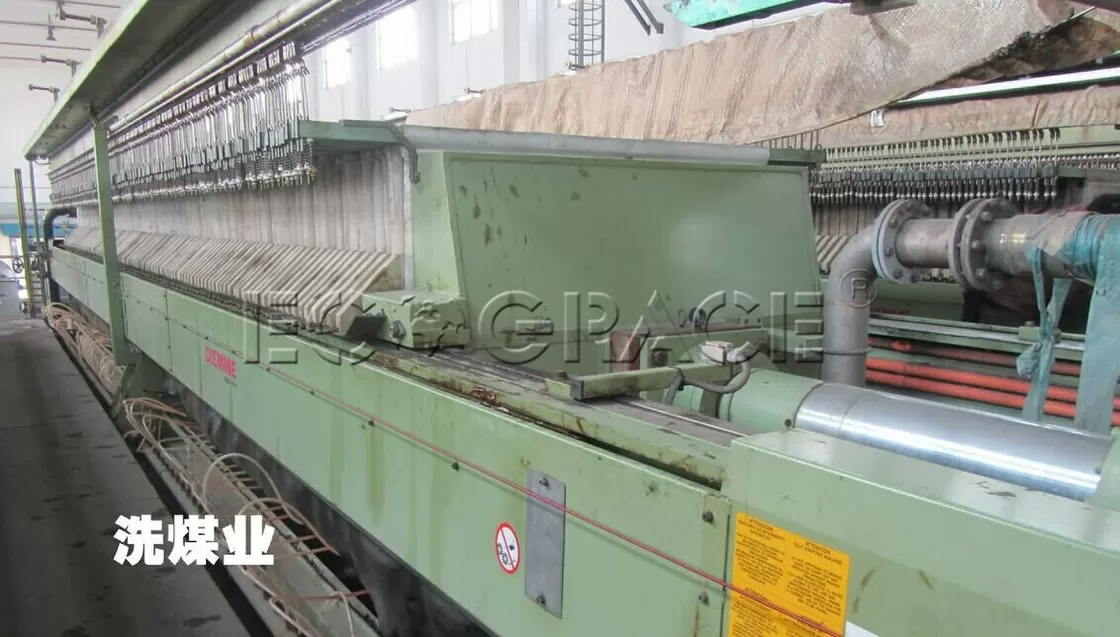

1.) Metallurgy, Mining & Mineral , coal
Gold, silver, copper, zinc ore mineral powder, coal washing , tailing coal
Aggregate , Asphalt , Limestone , Gypsum , etc

2) Chemical
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)

3)Sewage
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment

4 )Foods
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid, beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices

5) Pottery clay
Bentonite, electronic ceramic soil, kaolin, active soil, porcelain clay, limestone, granite furnaces

6) Petroleum
Diesel oil, sesame oil, shortening dewaxing etc
