| Place of Origin: | Zhejiang, China |
| Brand Name: | ECOGRACE |
| Certification: | SGS,ISO |
| Model Number: | FG-160x7000 |
| Minimum Order Quantity: | 100 pcs |
|---|---|
| Price: | USD$18-35/pcs |
| Packaging Details: | In cartons |
| Delivery Time: | |
| Payment Terms: | L/C, D/A, T/T, Western Union, MoneyGram, D/P |
| Supply Ability: | 5000 pcs per week |
Detailed Product Description
| Fiber: | Fiberglass Filter Bag | Weight: | 775 Gsm |
|---|---|---|---|
| Thickness: | 0.8mm | Diameter: | 120-180mm |
| Length: | 2000-8000mm | Application: | Cement Plant |
| Working Temperature: | 260degree | Warranty: | 12month |

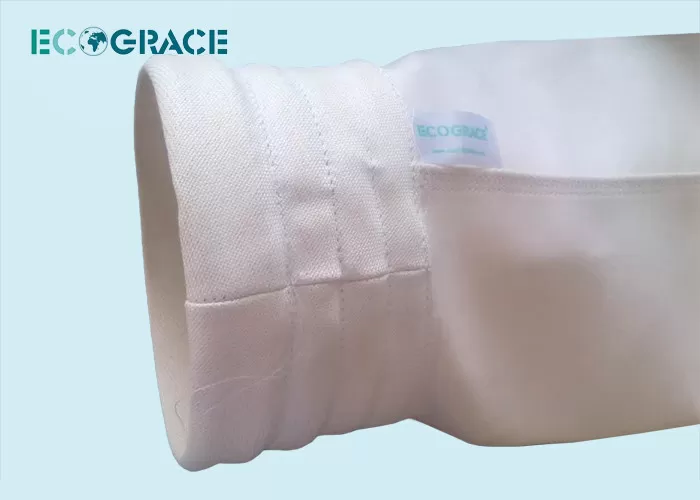

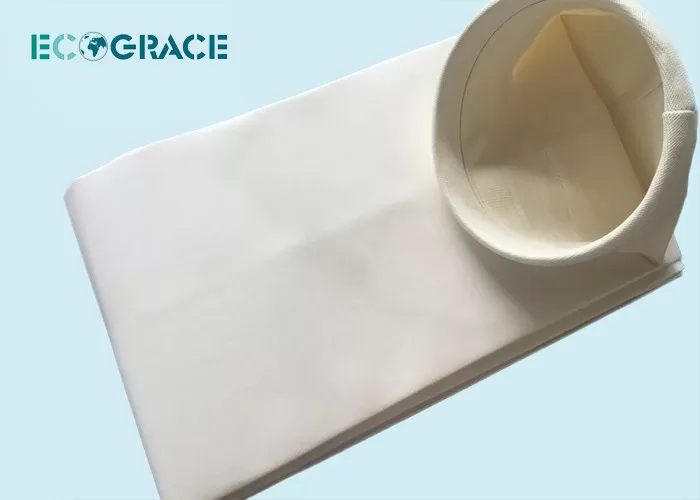

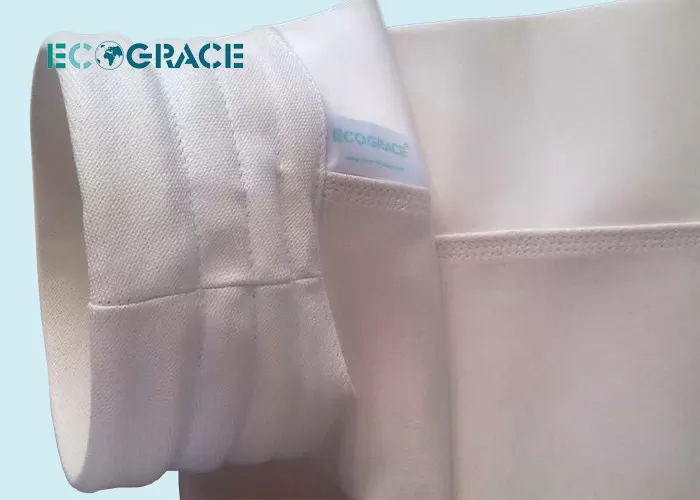

Dust Extractor PTFE Membrane Fiberglass Filter Bag for Smoke Filtration
Fiberglass Filter Bags Specification:
1. Material : Fiberglass staple fiber
2. Scrim: with fiberglass staple yarn
3. Width:≤2.2m
4. Thickness:2.3-2.7mm
5. Weight:800-900g/m2 ±10%
6. Temperature (ºC): Continue: 240, Instant: 280
Fiberglass Filter Bags Applications :
Fiberglass non woven filter media bags applications ranges in asphalt plant, incinerator, metallurgy, cement carbon black, liquid boiler, coal fire boiler dust filtration.
Fiberglass Filter Bags Advantages :
1. Good Temperature-Resistance. Max. Temp. 280 degree C.
2. High Filtration Efficiency: up to 99.9%
3. Excellent performance in Anti corrosion.
4.Fiberglass filters is the first choice for incinerator smoke , smoke in industries like metallurgy, cement , carbon black, liquid boiler, coal fire boiler.
5. Longer working time: more than 36 months.
6. Variety of finish treatments : Coating PTFE Membrane ,PTFE Impregnation
7. Good heat resistance, flame retardant, anti-corrosion effect.
8 . Used in dust filtration of high temperature, high acidity, high alkalinity, fine high
temperature, collection of valuable metal powder , high adhesive property etc.
9. . Customized by order.
With rich practical experience and working R&D team, we can design and develop kinds of filter media to satisfy the complex and diverse working conditions.
10. Advanced production lines: Complete testing and testing methods are the assurance to the products’ quality.
Fiberglass Filter Bags Physical Properties :
| Weight(gsm) | 850 | |
| Thickness(mm) | 2.5 | |
| Width(mm) | ≤2.2m | |
| Finish treatment | Singeing, Calendering, Heat setting | |
| Air permeability(L/m2.s) | 200-350 | |
| Tensile strength(N/5cm) | warp | ≥900 |
| weft | ≥1050 | |
| Tensile elongation(%) | warp | ≤35 |
| weft | ≤60 | |
| Heat shrinkage(%) | warp | ≤1.5 |
| weft | ≤1.0 | |
| Temperature(ºC) | Continue | 240 |
| Instant | 280 | |
Fiberglass Filter Bags Chemical Properties:
| Anti-acid | Excellent |
| Anti-alkali | Excellent |
| Anti-abrasion | Excellent |
| hydrolysis stability | Good |
